Description

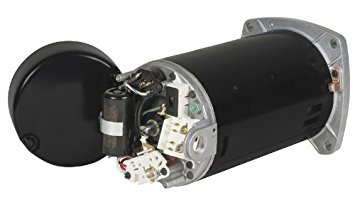

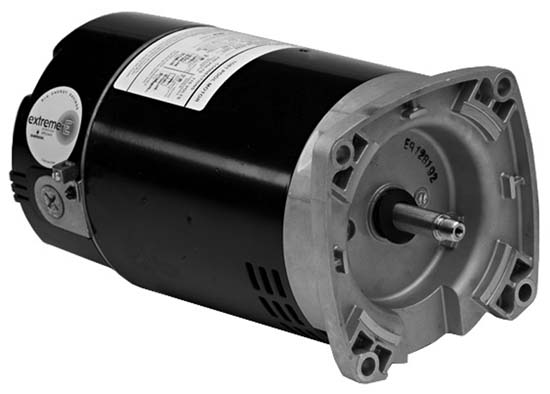

Century(R) Up-Rated Two-Compartment Pool Filter Motor, UAC-Type, Motor Design: Capacitor Start, Open Dripproof Enclosure, 1.5 HP, 1.65 THP, 3450 RPM, 48Y Frame, Voltage Rating: 115/230 V, 19.2/9.6 A, Frequency Rating: 60 Hz, 1-Phase, 1 -Speed, Mounting Type: C-Face, Motor Thermal Protection: Auto, Insulation Class: B, 1.10 Service Factor, Sealed Ball Bearing, Ambient Temperature: 50 deg C, CCWPE Shaft Rotation, Threaded Shaft, Shaft Diameter: 5/8 Inch, Overall Length: 13.13 Inch, 5-5/8 Inch Diameter, Continuous Duty, Standard Efficiency Group, Square Flange, Shaft Material: 303 Stainless Steel, Satin Black
